Toolpath > Simulation > Simulation Control Bar

Use this menu option to display the Simulation Control toolbar during simulation.
The Simulation Control Bar  button on the Simulation toolbar and on the Toolpath panel is a shortcut for this menu option. The availability of this button is license dependent.
The Simulation toolbar is hidden by default. To display the toolbar, right-click a docking area and select Simulation in the context menu. The availability of this toolbar is license dependent.

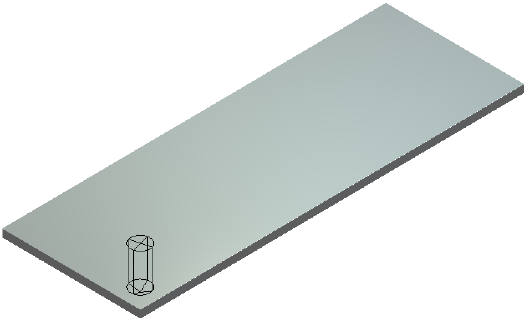

When using the Simulation Control toolbar, a wireframe tool is displayed to simulate the tool moves. The simulation block is gradually updated to simulate the results of the machining process. For example, the image below shows the wireframe of a V-Bit 32 mm 130 degree tool machining bevel carved text into the simulation block:

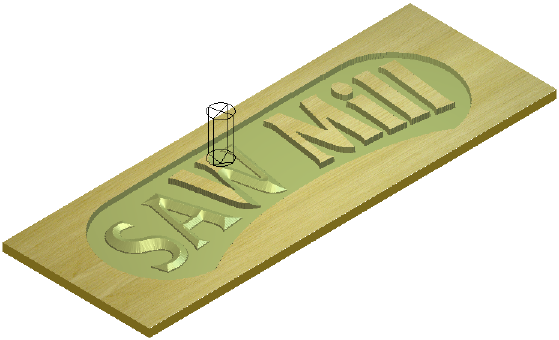

The simulation block and wireframe tool are displayed in the 3D view with the Simulation Control toolbar floating over it.

The toolbar includes the following buttons:

 — Click to pause the simulation.

 — Click to simulate the selected toolpath's next move, gradually updating the simulation block as it does.

 — Click to simulate the selected toolpath, gradually updating the simulation block as it does.

 — Click to simulate the selected toolpath until its next Z retract move, gradually updating the simulation block as it does.

 — Click to quickly simulate the whole of the selected toolpath.

 — Click to quickly simulate the selected toolpath up until its next retract move.

 — Click to stop the simulation and close the Simulation Control toolbar.
