Using a toolpath summary
Using a toolpath summary
You can review, print or save details of the toolpaths you have created to machine a model.
The Toolpath Summary Information dialog displays the following information:
- material dimensions;
- calculated toolpaths; and
- machining parameters of all tools used.
The total machining cycle time is also calculated based on the feed rates of the various tools selected when creating the toolpaths.

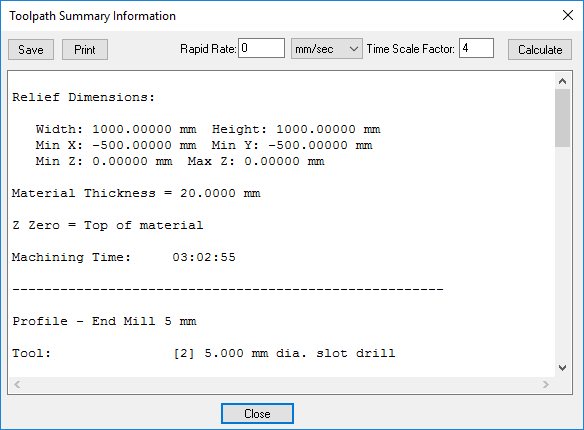

To display the Toolpath Summary
Information dialog, click the Toolpath
Summary button in the Toolpaths panel.
