Vector > Close > Move End Node

Vector > Close > Move End Node

Vector > Close > Move End Node

Select this menu option to close a selected vector by joining the start and end nodes.
The Close Vector by Moving Ends  button on the Design and Vector Editing toolbars is a shortcut for this menu option. The availability of toolbars is license dependent.

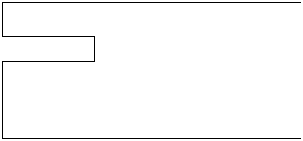

For example, this vector:

changes to:
