Emboss relief wizard

Use the Emboss Relief Wizard to flatten an assembly and create a relief.

To create an embossed relief:

  1. Import or create an assembly.

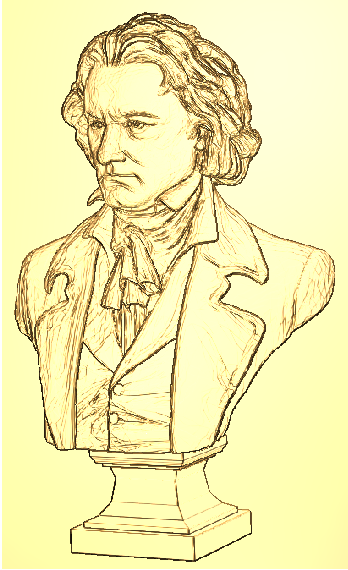

    For example, this mesh of a bust.


  2. In the Assembly panel, click the Emboss Relief Wizard  button to display the first panel of the wizard.
  3. In the 3D view, hold down the middle-mouse button and rotate your assembly until it is at the orientation from which you want to create an emboss relief.
  4. Click Next to display the second panel.
  5. Drag the slider to apply perspective to the model.
    • If you want to make any changes to the position of the assembly, click Prev to return to the previous step.
  6. Click Next. The third panel is displayed and a model containing the relief is added to the Project Tree.
  7. In the Detail Height box, specify how much Z height is used for the emphasis of detail, edges, and features in the model.
  8. In the Shape Height box, specify how much of the original shape is incorporated into the embossed relief.
  9. Click Finish to create your embossed relief.


    You can now use sculpting and relief editing tools to edit the embossed relief.
