The Project Screen
The Project Screen

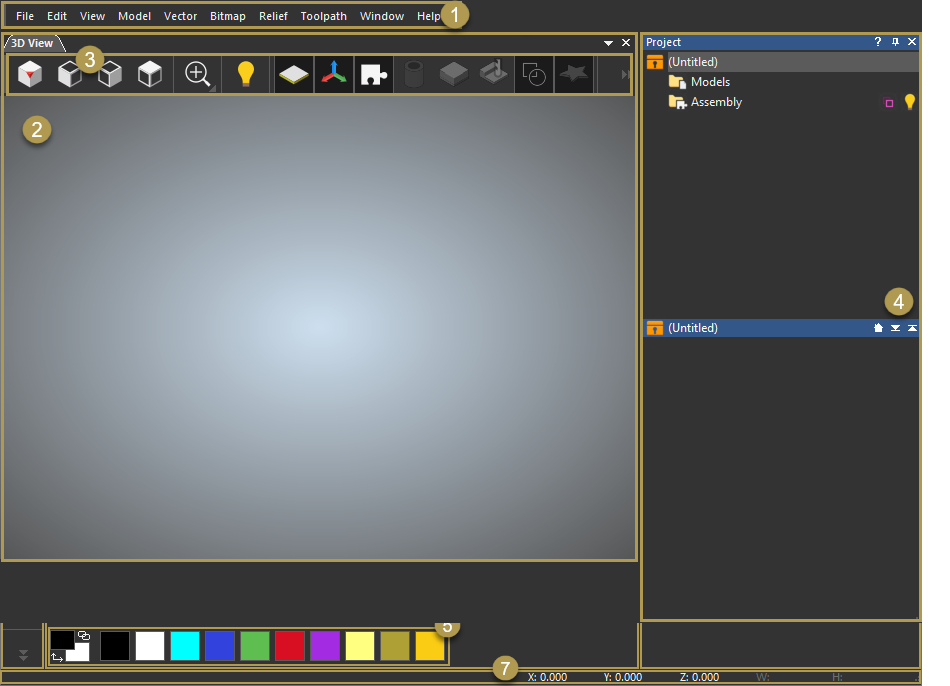

When you are working on a project, the project screen is
displayed. For example:
|
Area |
Description |
|
|
The Menu bar is located at the top of the main window. Click an entry to display a list of options. Many menu options have keyboard shortcuts. |
|
|
The workspace area contains the 3D view, which displays assemblies and replica meshes. When you open a model as part of a project, you can switch between displaying the project's assemblies and meshes, the model's relief layers, the calculated toolpaths, and the toolpath simulations. |
|
|
The 3D View toolbar enables you to manipulate the 3D view, and to control what is displayed. |
|
|
The Project panel contains the Project Tree and the tools associated with the Models and Assembly items. |
