The Model Screen

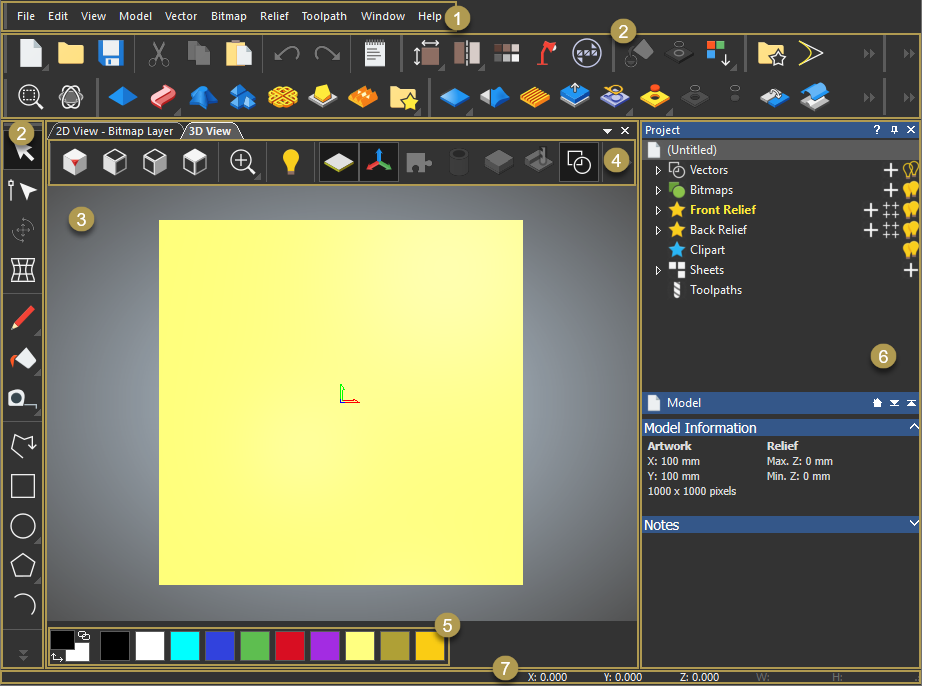

When you are working on a model, the model screen is displayed. For example:

Related Articles
The Project Screen
The Project Screen When you are working on a project, the project screen is displayed. For example: Area Description The Menu bar is located at the top of the main window. Click an entry to display a list of options. Many menu options have keyboard ...
File > Close Model
File > Close Model Use this menu option to close the model on which you are working. If you have any unsaved changes, you are prompted to save them before closing. Click: Yes to save the changes and return to the start screen. The name of the saved ...
File > New > Model
File > New > Model Use this menu option to create a model. When creating a model in Carveco, the model's dimensions typically represent the sheet or block of material you want to use when manufacturing your finished design. The New Model button on ...
Creating a model from a shank
Creating a model from a shank When creating a shank, a Carveco model is created as part of the project according to the settings you define. To create a model using a shank: Select File > New > Project. Carveco displays the project screen. In the ...
Model menu
Model menu Use the options on the Model menu to manage the display of the model.

Area	Description
	The Menu bar is located at the top of the main window. Click an entry to display a list of options. Many menu options have keyboard shortcuts. The availability of some menu options is license dependent.
	Toolbars provide shortcuts to the most frequently used menu options. Click a button to access the function directly. The availability of some toolbars is license dependent.
	The workspace area contains the 2D and 3D views, which are tabbed by default. Both views display vectors and bitmap artwork; only the 3D view displays reliefs, calculated toolpaths, and toolpath simulations.
	The 2D View and 3D View toolbars enable you to manipulate the 2D and 3D views, and to control what is displayed. Which toolbar is displayed depends on which view is active.
	The Palette displays the colours that make up any bitmap artwork.
	The Project panel contains the Project Tree and the tools associated with the Vectors, Bitmaps, Front Relief, Back Relief, Clipart, Sheets, and Toolpaths items. The availability of some items is license dependent.
	The status bar displays the cursor's coordinates; the width and height of the bounding box when vectors or previews of toolpaths are selected; a command's description when you position the cursor over a button or menu option; and a progress bar when calculating reliefs and toolpaths.
