Using the 2D view
Using the 2D view

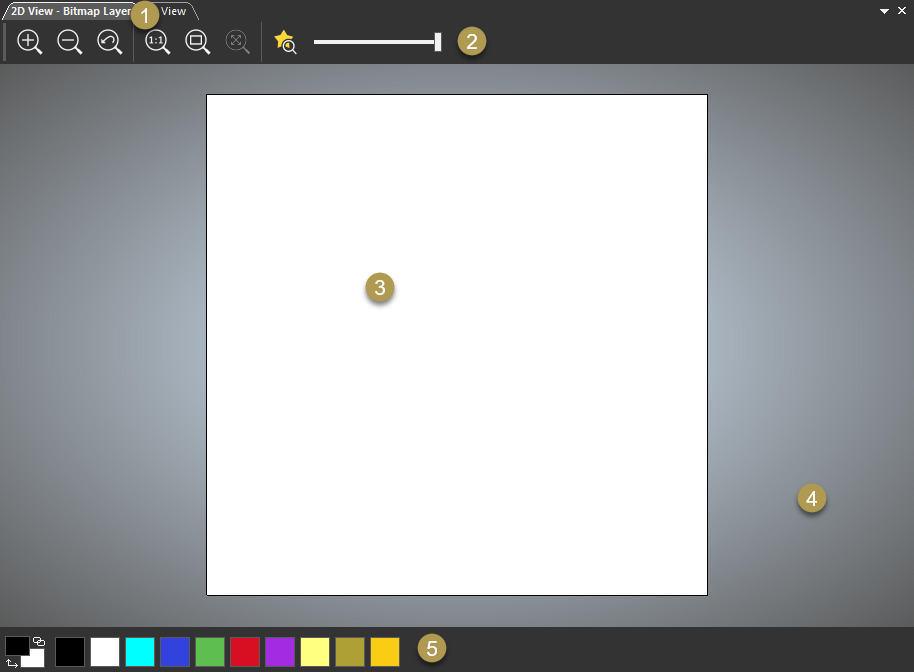

When you select the 2D View tab, the 2D view is displayed. For example:
Area | Description |
The 2D View tab, which displays the name of the view and the currently active bitmap layer. | |
The 2D View toolbar. | |
The model area. | |
The background. | |
The colour Palette. |
When working in an open model, the 2D view displays:
- the artwork on the currently active bitmap layer.
- the artwork on all visible vector layers.
- sheets.
- a preview of all calculated 2D toolpaths.
- a preview of the currently active relief layer.
- a greyscale of the composite relief.
You can create multiple 2D views, and for each 2D view you create, you can change its name.
